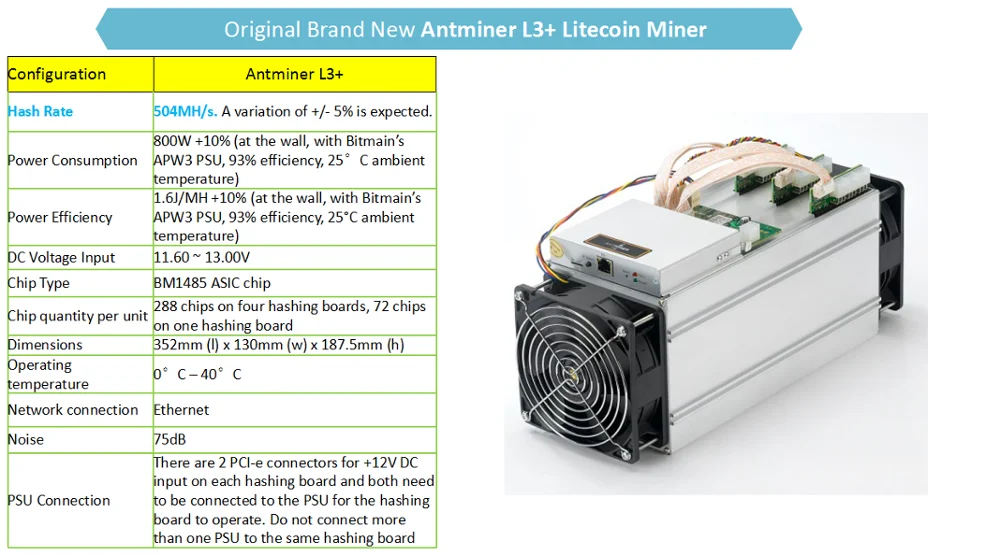

Hash Rate:504MH/s. A variation of +/- 5% is expected.
Power Consumption:800W +10% (at the wall, with Bitmain’s APW3 PSU, 93% efficiency, 25°C ambient temperature)
Power Efficiency:1.6J/MH +10% (at the wall, with Bitmain’s APW3 PSU, 93% efficiency, 25°C ambient temperature)
DC Voltage Input:11.60 ~ 13.00V
Chip Type:BM1485 ASIC chip
Chip quantity per unit288 chips on four hashing boards, 72 chips on one hashing board
Dimensions:352mm (l) x 130mm (w) x 187.5mm (h)
Operating temperature:0°C – 40°C
Antminer L3+, 504MH/s Power consumption figures will vary with your PSU’s efficiency, the ambient operating temperature and the accuracy of the power meter.
The PSU will be shipped with the miner if you order the PSU in this page. If you need the PSU earlier please place a separate order for the PSU only.
Power supply unit is not included. You will need an ATX PSU with at least 9 six-pin PCIE connectors. There are 2 PCI-e connectors for +12V DC input on each hashing board and both need to be connected to the PSU for the hashing board to operate. Do not connect more than one PSU to the same hashing board.
Bitmain recommends the new PSU that is especially designed for the Antminer L3+ and will be available to purchase after 20 June 2017 with shipping start date before that of this Antminer L3+ batch.
Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner only after all the 9 PCIE connectors are connected to power supply.
